Drinking Straw Machine
Home Drinking Straw Machine

YINKO Automatic U shape Paper Straw Packing Machine For Wholesale

YINKO Automatic U shape Paper Straw Packing Machine For Wholesale
YINKO Automatic U shape Paper Straw Packing Machine For Wholesale
YINKO Automatic U shape Paper Straw Packing Machine For Wholesale
YINKO Automatic U shape Paper Straw Packing Machine For Wholesale
YINKO Automatic U shape Paper Straw Packing Machine For Wholesale

YINKO Automatic U shape Paper Straw Packing Machine For Wholesale

This YK033 U-shape straw packing machine is designed to bend flexible straw and pack into bags automatically.

  • Model No :

    YK-033

  • Product Name :

    U shape straw wrapping machine

  • Power Supply :

    3P 380V 50Hz

  • Production Capacity :

    500-700pcs/min

  • Usage :

    packing u shape straw

  • Shipping Port :

    Shanghai/ningbo port

  • Lead Time :

    35days

  • Material :

    PP/PLA/Paper flexible straw

  • Packing material :

    BOPP Film
Inquire Now

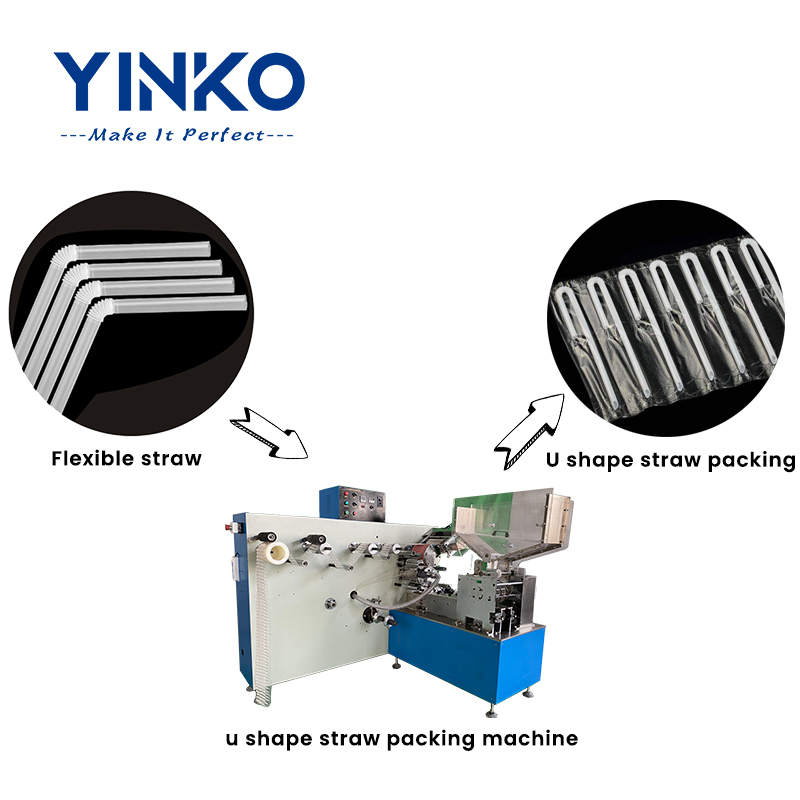

This YK033 U-shape straw packing machine can bend flexible straw into U shape and automatically pack them with Bopp film,

The machine mainly consists of a hopper,straw aligning device,sealing device,transmission system,straw filling device,cutting system,auto defective repair device,etc.

The u-shape automatic straw packing machine is reliable and easy operant equipment.

Features

  • U-shape straw bending,filling and packing at one time;
  • Automatic counting and batch alarm;
  • Adjustable packing speed;
  • High packing efficiency;

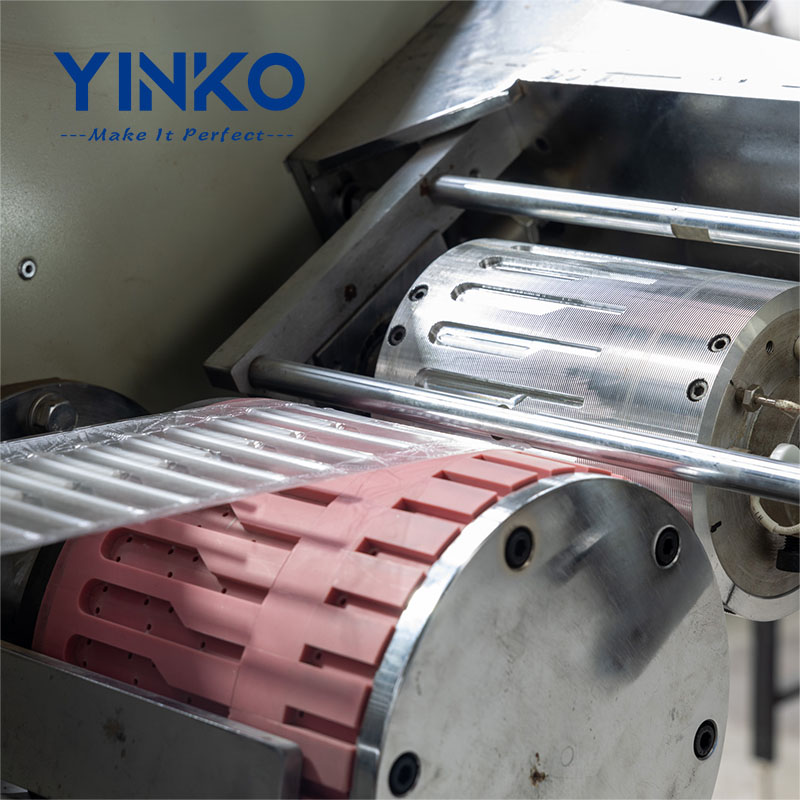

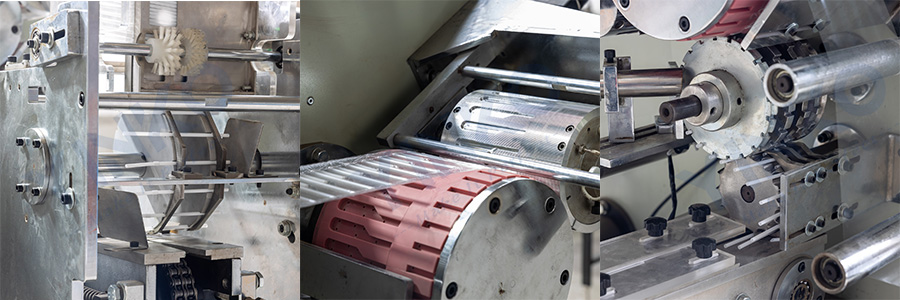

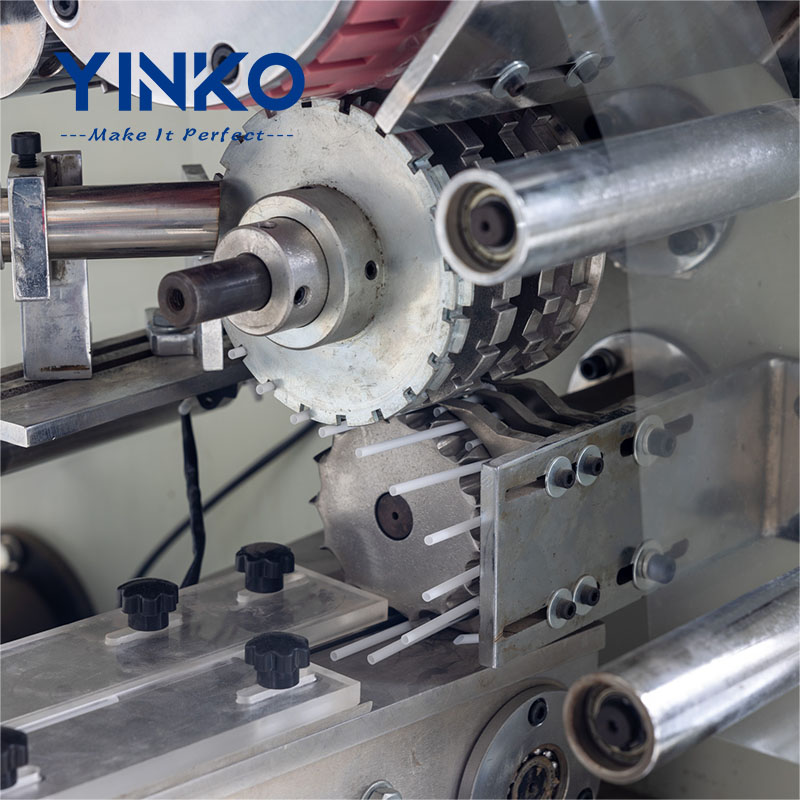

Machine details

u shaped straw packing machine
u shape straw packing machine u shaped paper straw

Specifications

Model YK033
Driving motor 1.5kw (frequency converter)
Production Capacity 500~700 pcs/min
Packing method four sides sealing
Packing film specifications Material can be hot sealed such as Bopp
Shape Roll
Roll diameter Max 280mm
Internal diameter of paper tubes 76mm
Film width Max 180mm
Film thickness 20μ-30μ
Packing shape 22mm(pitch节距)×100~140m(Width宽度)
Straw specifications inner diameter Ø 3.8mm、Ø 4.2mm
Thickness 0.18~0.25mm
Length of u shape model 90mm(smaill type)/105mm(middle type)/128mm(big type)
other specifications can be customized
Machine 2000*1800*1600mm

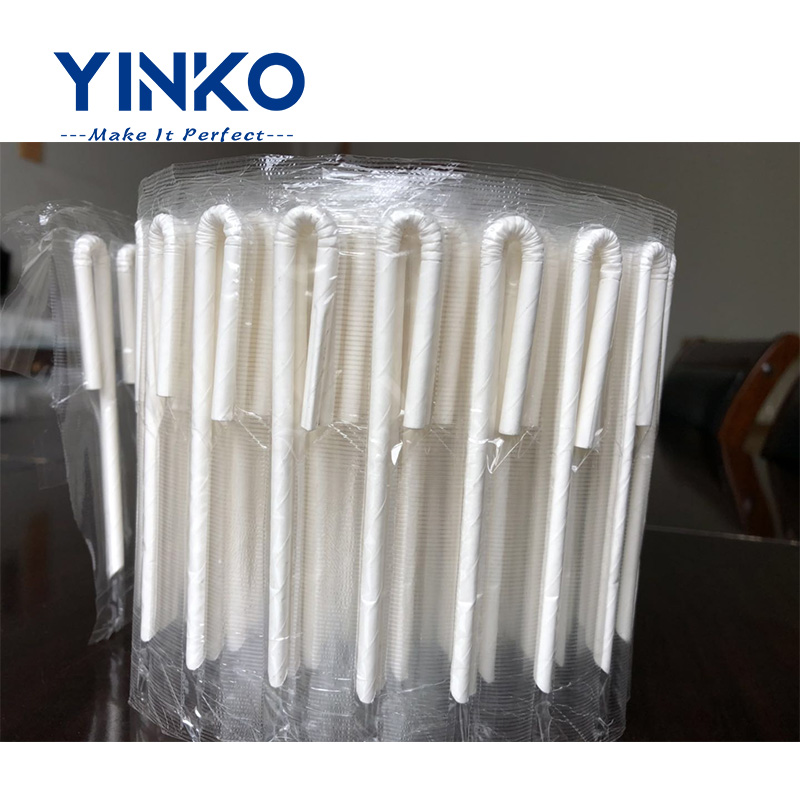

Applications

u shape straw application u shape straw application

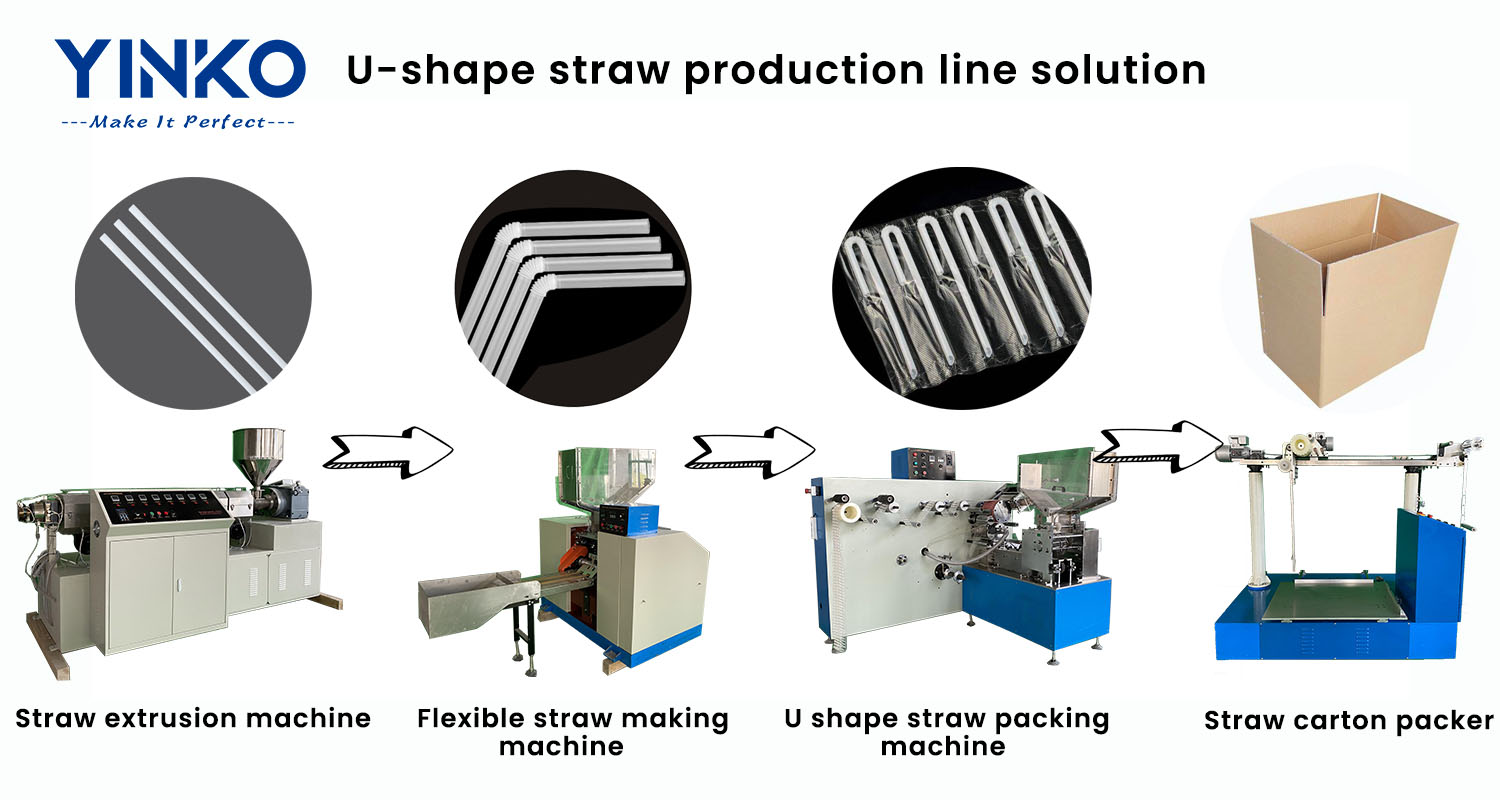

ONE STOP SOLUTION

u shaped straw production line



FAQ

1. What shall i provide if we want to buy this u shape straw packing machine?

Answer: you need to provide the flexible straw details. or we can give suggestions

2. Do you supply the BOPP film?

Answer: Yes,we can supply the BOPP film with good price
3. Will you provide any support on training and installation?

Answer: Yes, we can give instruction on installation, and also give free training, we provide excellent after-sale service

4. What are your advantages in this Industry?

Answer: We have great experience in this industry for 15 years, strict quality control(incoming material quality check, standard operation guide, multiple rounds machine testing), strong R&D ability(we have to keep upgrading our technology and applying it to the machine, ensure the machine working smoothly)

5. Do you give warranty to your machines?

Answer: Yes,we do provide one year warranty.

6. What's the lead time and payment terms?

Answer: normally 35 days, we accept 30% deposit in advance by TT,balance before delivery
