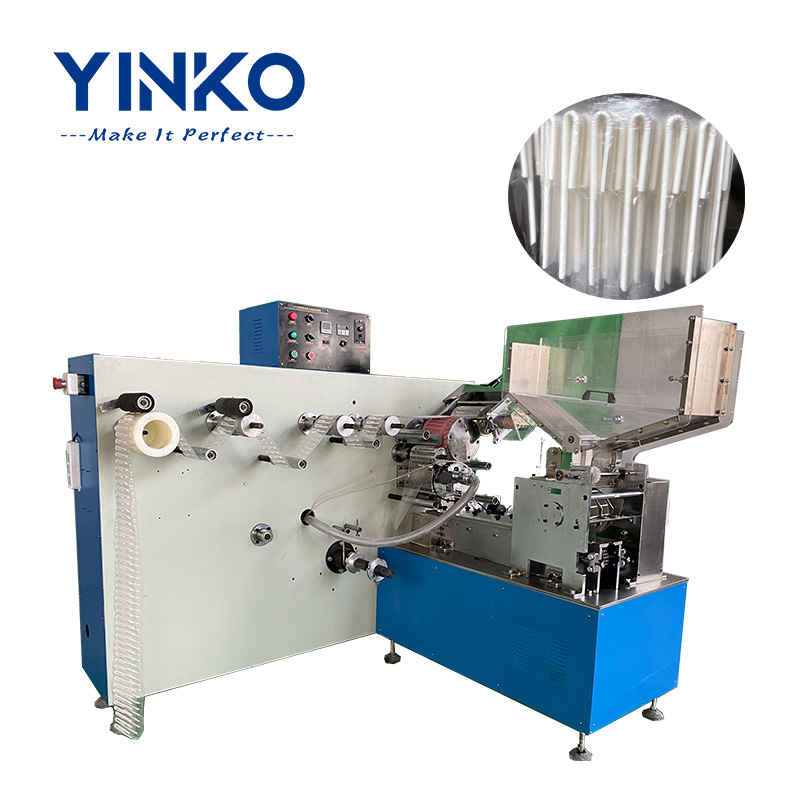

This YK033 U-shape straw packing machine is designed to bend flexible straw and pack into bags automatically.
Model No :
YK-033Product Name :
U-shape straw packing machinePower Supply :
3P 380V 50HzProduction Capacity :
500-700pcs/minUsage :
packing u shape strawShipping Port :
Shanghai/ningbo portLead Time :
35daysMaterial :
PP/PLA/Paper flexible strawPacking material :
BOPP FilmThis YK033 U-shape straw packing machine can bend flexible straw into U shape and automatically pack them with Bopp film,
The machine mainly consists of a hopper,straw aligning device,sealing device,transmission system,straw filling device,cutting system,auto defective repair device,etc.
The u-shape automatic straw packing machine is reliable and easy operant equipment.
 |
 |
Features

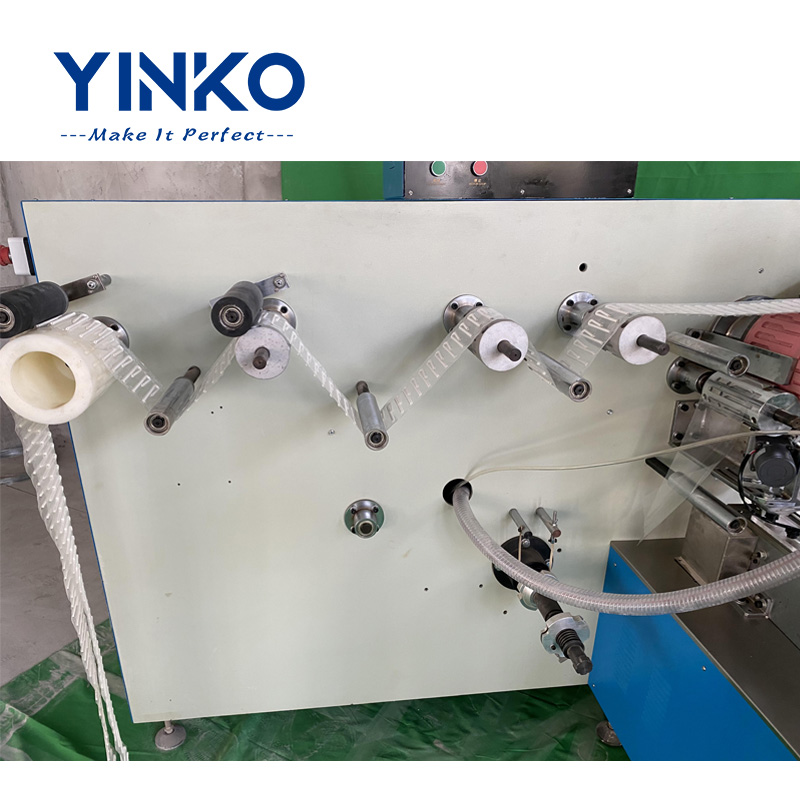

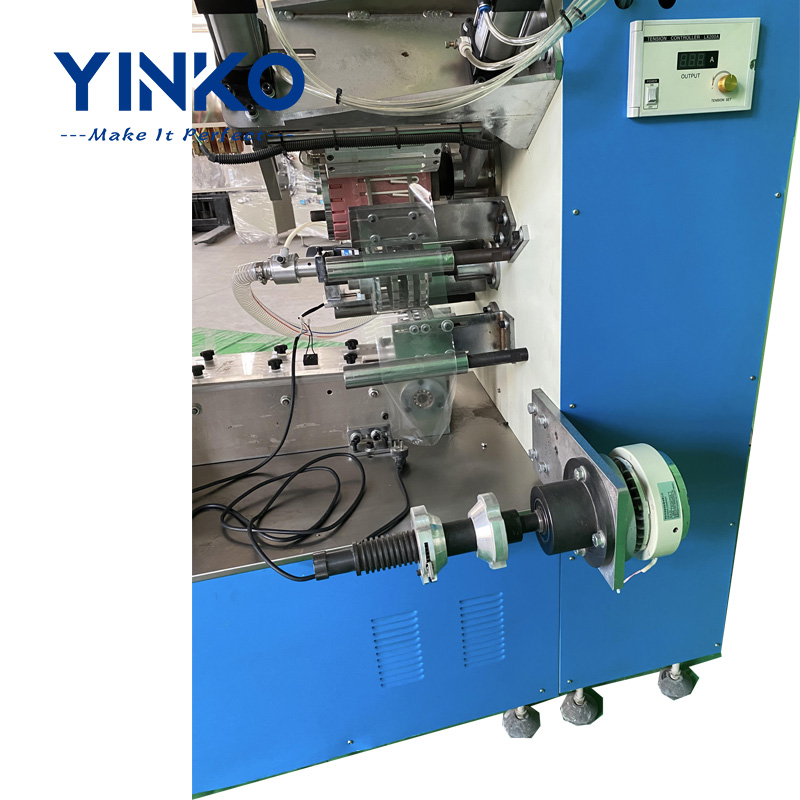

Machine details
 |
 |
 |
 |
 |
 |
Specifications
| Model | YK033 | |
| Driving motor | 1.5kw (frequency converter) | |
| Production Capacity | 500~700 pcs/min | |
| Packing method | four sides sealing | |
| Packing film specifications | Material | can be hot sealed such as Bopp |
| Shape | Roll | |
| Roll diameter | Max 280mm | |
| Internal diameter of paper tubes | 76mm | |
| Film width | Max 180mm | |
| Film thickness | 20μ-30μ | |
| Packing shape | 22mm(pitch节距)×100~140m(Width宽度) | |
| Straw specifications | inner diameter | Ø 3.8mm、Ø 4.2mm |
| Thickness | 0.18~0.25mm | |
| Length of u shape model | 90mm(smaill type)/105mm(middle type)/128mm(big type) | |
| other specifications can be customized | ||
| Machine | 2000*1800*1600mm | |
| Remarks:All specifications are subject to change without notice | ||
| For more information,please feel free to contact us | ||

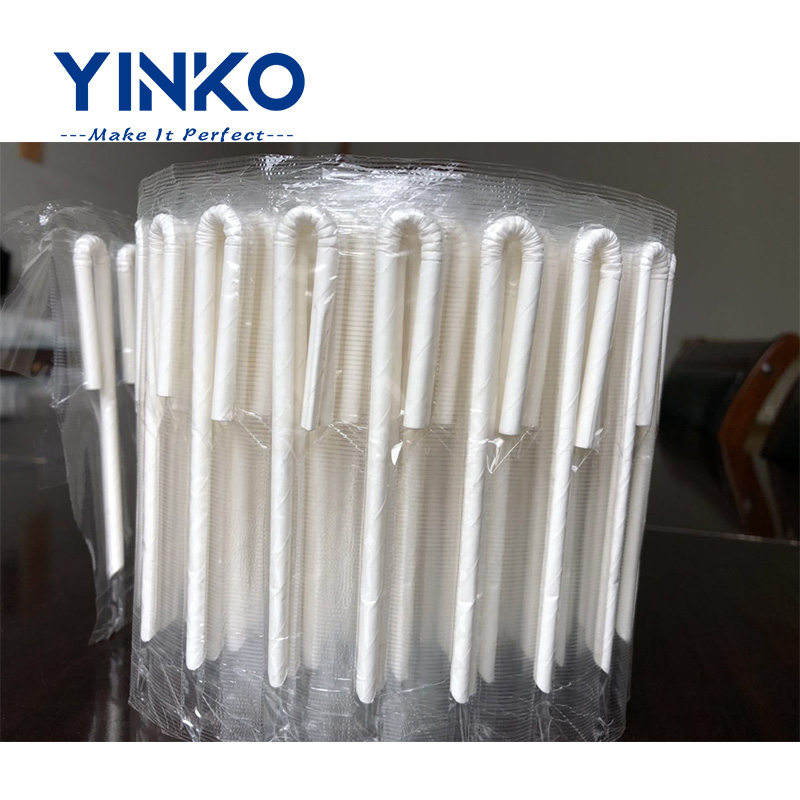

U-Shape Straw Applications
 |
 |

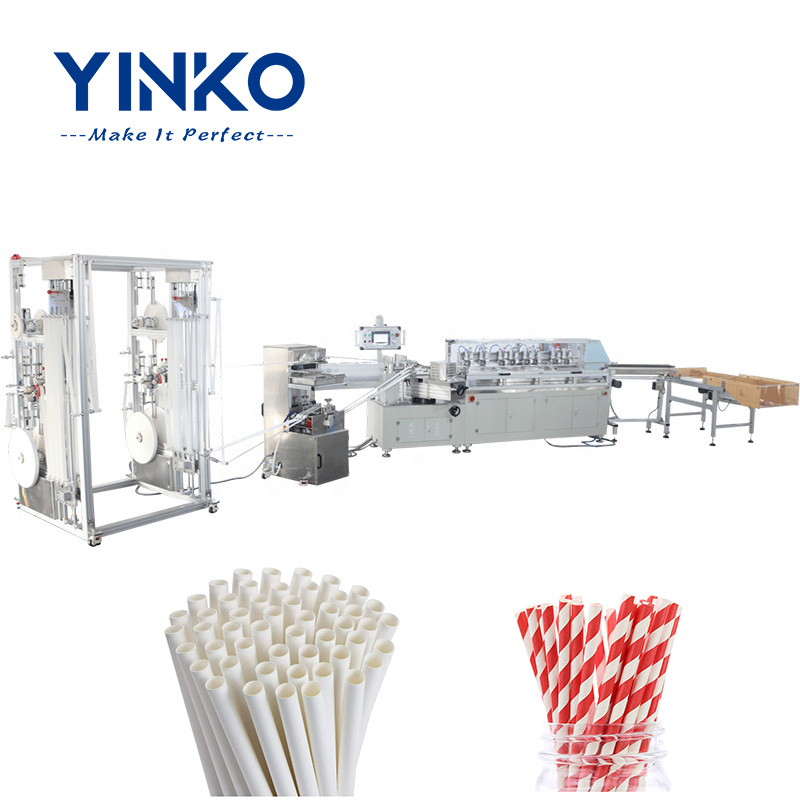

One Stop Solutions
 |
 |
 |
 |

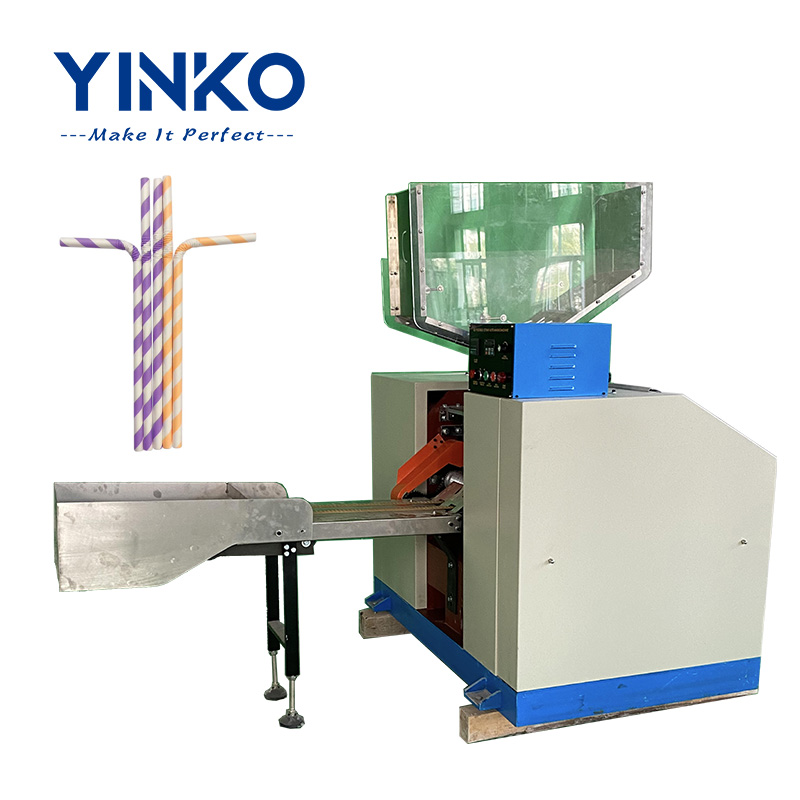

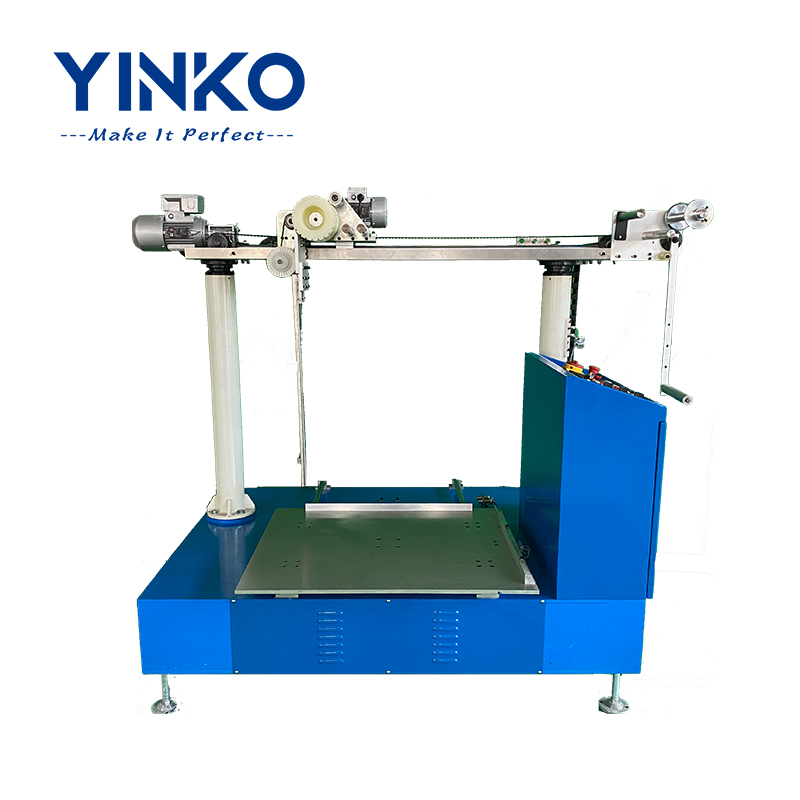

| Paper straw making machine | Flexible paper straw forming machine | U Shape paper straw packing machine | Straw carton packer |
| For more information,please feel free to contact us | |||
FAQ
|
1. What shall i provide if we want to buy this u shape straw packing machine? Answer: you need to provide the flexible straw details. or we can give suggestions |
|
2. Do you supply the BOPP film? Answer: Yes,we can supply the BOPP film with good price |
| 3. Will you provide any support on training and installation?
Answer: Yes, we can give instruction on installation, and also give free training, we provide excellent after-sale service |
|
4. What are your advantages in this Industry? Answer: We have great experience in this industry for 15 years, strict quality control(incoming material quality check, standard operation guide, multiple rounds machine testing), strong R&D ability(we have to keep upgrading our technology and applying it to the machine, ensure the machine working smoothly) |
|
5. Do you give warranty to your machines? Answer: Yes,we do provide one year warranty. |
|
6. What's the lead time and payment terms? Answer: normally 35 days, we accept 30% deposit in advance by TT,balance before delivery |
