Drinking Straw Machine
Home Drinking Straw Machine

High speed single drinking straw packing machine

High speed single drinking straw packing machine
High speed single drinking straw packing machine
High speed single drinking straw packing machine
High speed single drinking straw packing machine

High speed single drinking straw packing machine

YK231 single straw packing machine is designed to pack the straight straw or flexible straw individually with BOPP film or paper.

  • Model No :

    YK231

  • Product Name :

    Individual straw packing machine

  • Power Supply :

    3P 380V 50HZ

  • Production Capacity :

    600-700pcs/min

  • Usage :

    Pack straw individually

  • Shipping Port :

    Shanghai/ningbo port

  • Lead Time :

    35days

  • Material :

    Straight straw/flexible straw

  • Packing material :

    BOPP film/paper
Inquire Now
single straw packing machine

YK031 automatic individual straw packing machine is designed to pack the straight straw or flexible straw with bopp film or paper.

The machine consists of drive motor, transmission system, film unwinding device, straw filling device, automatic sealing device and product conveying device with compact design, easy to adjust and maintain,

It has a high degree of automation and production speed, and has the ability to drop, fill and pack in one time. Easy to operate and reliable performance.





Features





  • High Output Efficiency: Designed for high production capacity to meet large-scale packaging demands.

  • Integrated Operation: Automatically completes straw feeding, filling, and packaging in a single process, reducing labor and increasing efficiency.

  • Smart Counting System: Equipped with automatic counting and pre-set quantity control. The machine stops and alerts when the set quantity is reached, making it ideal for streamlined secondary packaging.

  • Adjustable Packaging Speed: Flexible speed control to match different production requirements and optimize performance.

  • Versatile Packaging Materials: Compatible with both BOPP film and paper, offering packaging flexibility based on customer needs.





Machine details

single straw packing machine

 single straw packing machine single straw packing machine single straw packing machine



Specifications

Model YK031
Driving motor 0.75 kW (controlled by frequency converter)
Production capacity 600~700 pcs/min (straight straw) 400~500 pcs/min (flexible straw)
Packing method Three-sides sealing
Packing material BOPP film, paper
Straw Specification Diameter Φ5-Φ12mm
Length 150~300mm
Other specifications are customizable
Machine size 1500×800×1300mm
Machine weight 250kg

Remarks: We can customize the machine based on customer requirements.



Packing photos

individual straw packing individual straw packing individual straw packing



One stop solutions

We provide the one-stop solution for straw production, from the straw making machine to individual straw packing machine to group straw packing machine

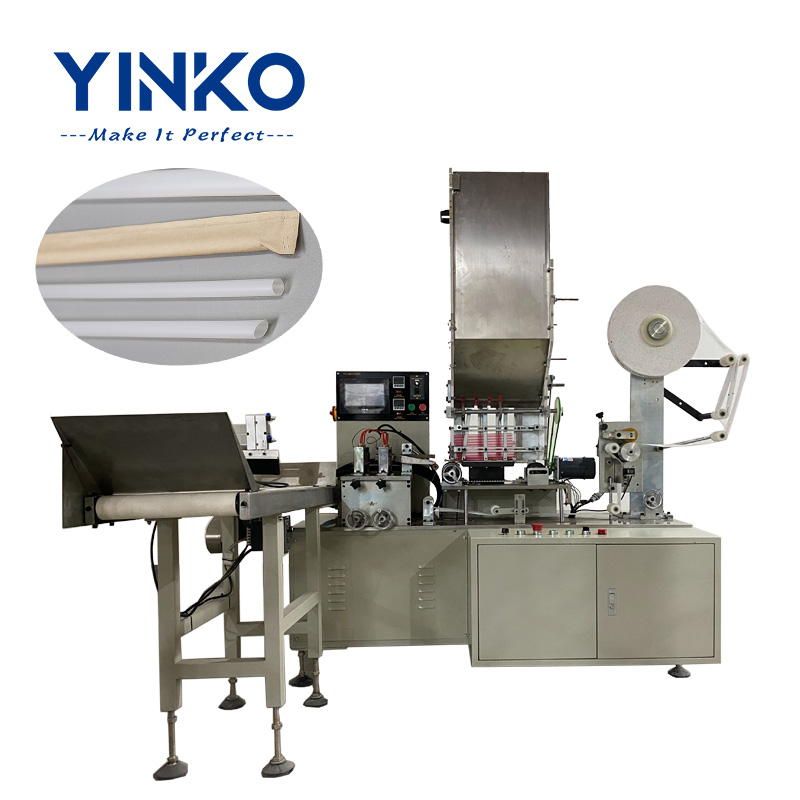

PLA straw making machine Individual straw packing machine Group straw packing machine
PP/PLA straw making machine Individual straw packing machine Group straw packing machine



FAQ

 1. Does this machine have printing functions?

Answer: Nope,this YK031 individual straw packing machine don’t have positioning and printing functions, only high speed packing

 2. Do you have a packing machine with printing functions?

Answer: Yes, we have a packing machine can printing on packing papers.

 3. Can we pack the individual straw into a bag directly?

Answer: Yes,with our YK062 multiple straw packing machine, can pack them into bag directly.more efficiently

 4. What's the warranty for this machine?

Answer: We provide one year warranty.

 5. Do you also provide the packing materials?

Answer: Yes, we can supply the packing materials, we have factories to produce them.

 6. What's the lead time and payment?

Answer: Normally we can deliver the machine in 30days after the deposit is received, 30% deposit in advance,and balance before delivery
