Drinking Straw Machine
Home Drinking Straw Machine

Hot sale disposable paper straw making machine manufacturer

Hot sale disposable paper straw making machine manufacturer
Hot sale disposable paper straw making machine manufacturer
Hot sale disposable paper straw making machine manufacturer
Hot sale disposable paper straw making machine manufacturer

Hot sale disposable paper straw making machine manufacturer

The machine is designed to produce high quality paper drinking straw with high production capacity,full automatic running.

  • Model No :

    YKZXG-20

  • Product Name :

    Paper straw making machine

  • Power Supply :

    3P 380V 50HZ

  • Production Capacity :

    0~80m/min(output)

  • Usage :

    Produce paper straw

  • Shipping Port :

    Shanghai/ningbo port

  • Lead Time :

    35days

  • Straw Color :

    Single /multiple

  • Material :

    Food grade paper
Inquire Now

New 8 Cutting Knife Paper Drinking Straw Making Machine

How it works?

Winding/spiraling different layers of the paper strip into the paper tube with glue.

Multi-cutting knife system, by servo track, cut the paper tube into a small piece of paper drinking straws.

Material: food-grade white craft paper and food-grade glue.

Sub-raw material: may need oil for lubrication and cooling. White mineral oil.

paper straw making machine

The whole system consists of following parts:

  1. Paper roll hanging bracket, 4 layers, auto-connecting/splicing;
  2. Glue station, stainless steel, glue auto feeding;
  3. Winding and control mechanism;
  4. Muti-cutting system, 8 cutting knives with dust & protecting cover;
  5. Straw conveyor;
  6. Straw collector.



Features

  • Higher Speed,max 105m/min input, 80m/min output.
  • 8 cutting-knife system, the new structure of the cutting cylinder. Easier to adjust the air cylinder up and down when making different-diameter paper straws.
  • 5 sets servo motor for spiraling roller, the cutting system moving left & right, supporting roller, and cutting knives.
  • Auto paper roll connecting function hanging bracket, auto splicer, 4 layers. Other brand paper straw-making machine paper roll hanging bracket is only 3 layers.
  • Auto-feeding function glue station.
  • Auto lubrication grease feeding system for cutting system.
  • Main electric parts are famous brands. Like the main servo motor, servo motor driver, frequency converter, and touch screen.



Machine details

paper straw making machine paper straw making machine paper straw making machine
Paper roll bracket glue station



Specifications

Model YKZXG-20
Electric power 3P 380V 50HZ
Power consumption 4.5~6.5KW/H
Full load amps 13.5A
Production speed 0~80m/min(output)
0~105m/min(paper feeding)
Paper layer 2-4 layers
Straw diameter 4.3~12mm(outer diameter)
3.5~11.3mm(inner diameter)
Max thickness 0.6mm-single side
Min thickness 0.2mm-single side
Straw length 100~1400mm(distance between 2 blades)
Cutting method 8 knifes,pneumatic driving
Glue method single & double side
Length control Encoder
Speed control Servo tracking
Mandrel fixing Screw clamp
Synchronism control Servo belt
Winding belt tension control Hand wheel
Belt angle control Hand wheel
Lubrication lubrication grease
Main parts dimension 3850×1200×1600mm
Land area required  8000x4500x1900mm
Winding roller diameter 215mm
Winding roller height 120mm
Weight 1400kg
Main parts
PLC Pankong
Control screen Schneider
Control system GD-XJ2.0
Servo motor Schneider
Frequency converter
Circuit breaker
Relay
Signal sensor Omron
Encoder Omron
Pneumatic cylinder AIRTAC
Bearing HRB

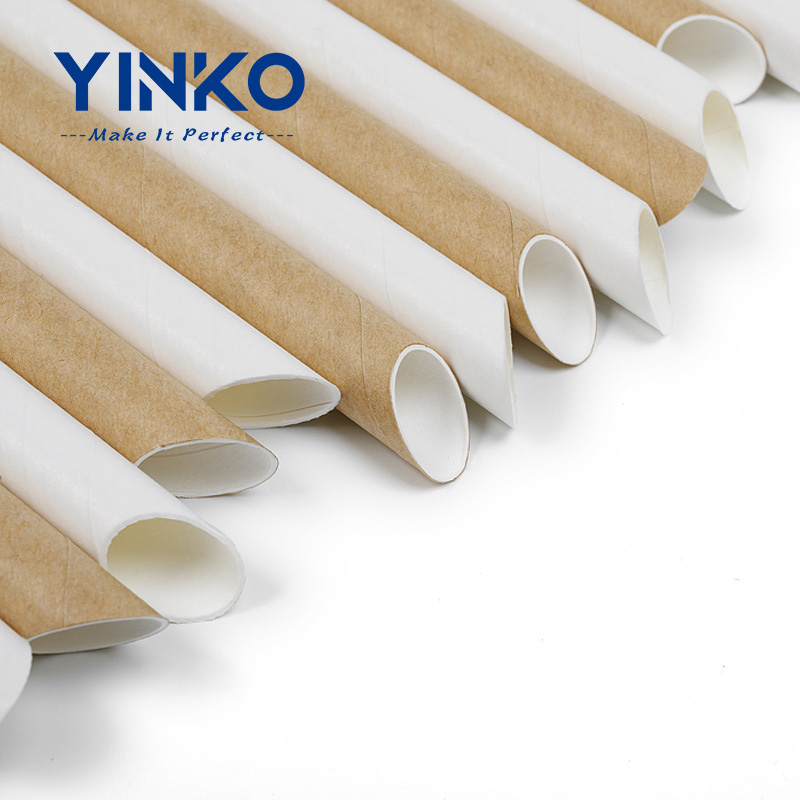

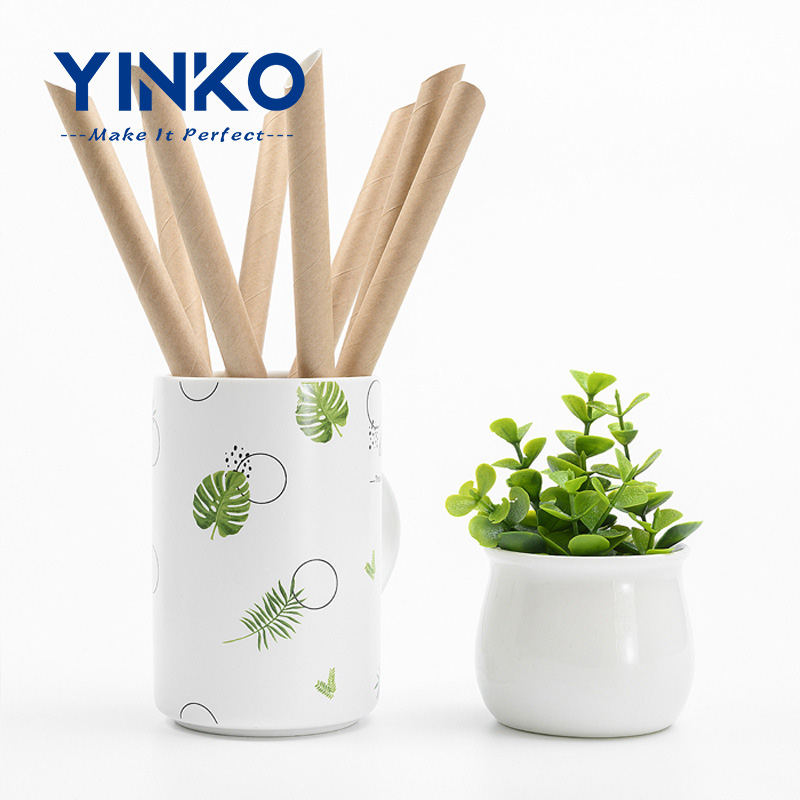

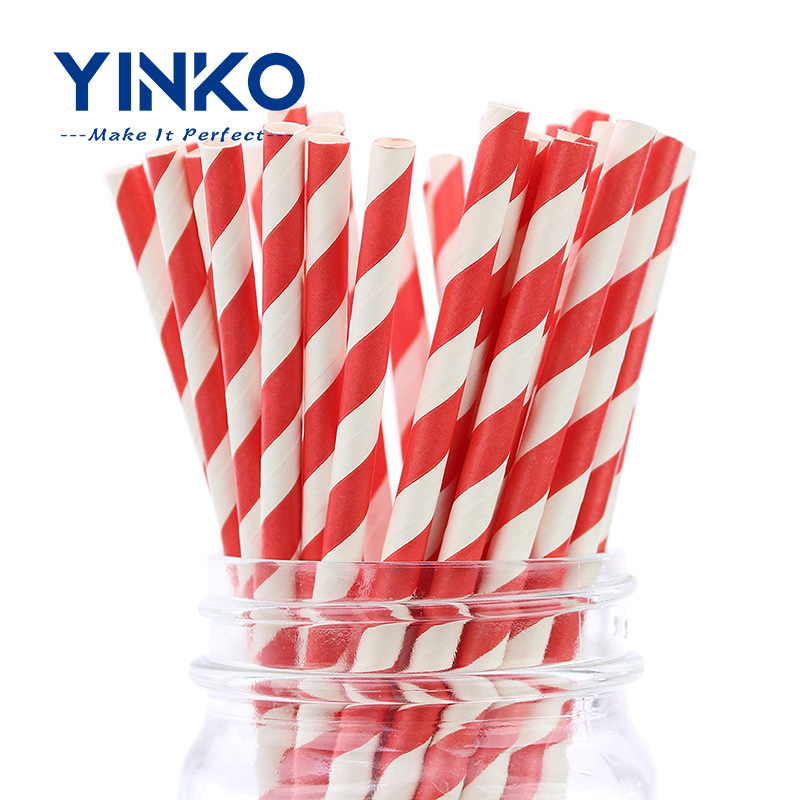

Paper straw photos

paper straw Biodegradable paper straw paper straw



One stop solutions

We can provide more~

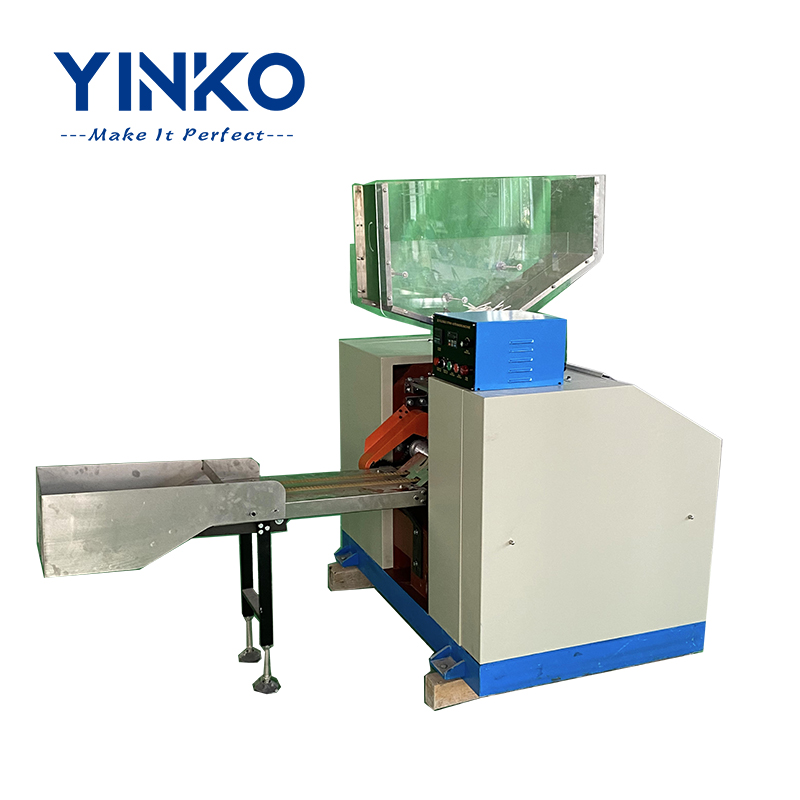

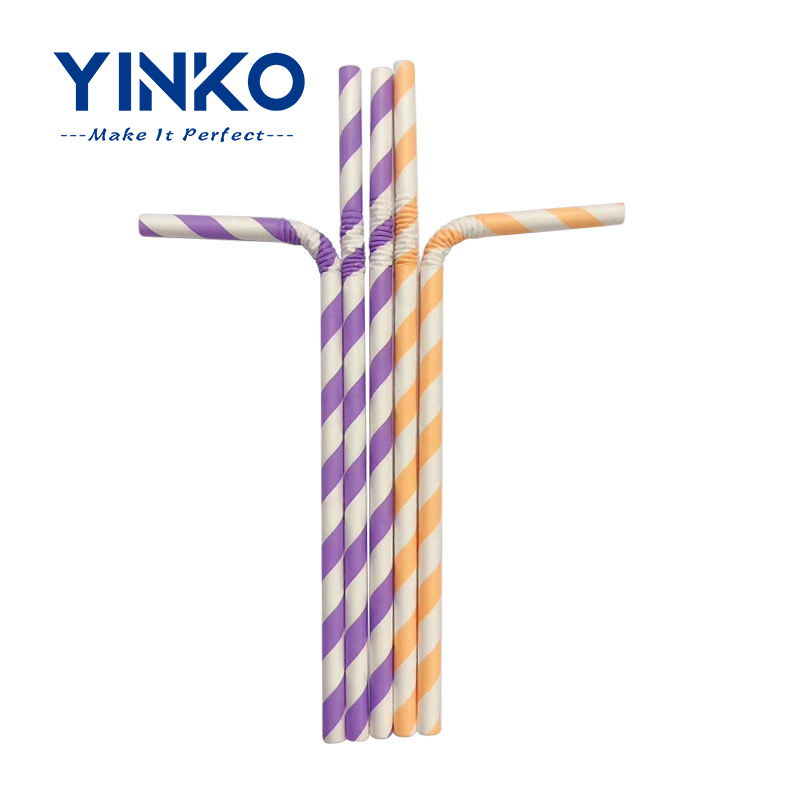

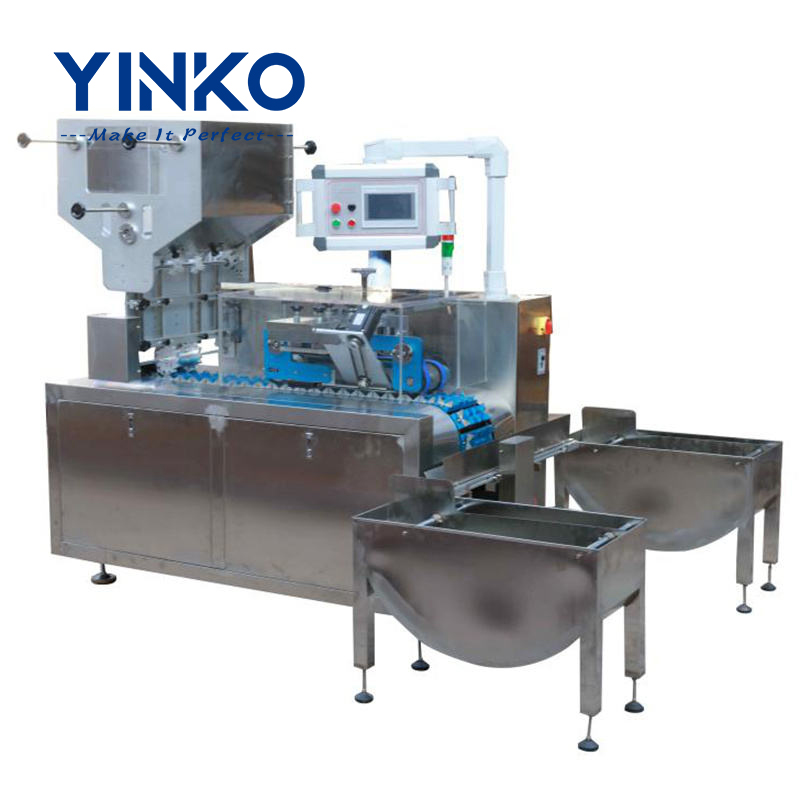

paper straw bevel cutting machine paper straw machine flexible paper straw bending machine flexible paper straw
Automatic paper straw bevel cutting machine Flexible paper straw bending machine
Do you want more information? contact us right now



FAQ

1. How to calculate the output capacity of paper straw per miniute?

Answer: For example, 70m/min, making 6*197mm straws. Considering some waste, we use 200mm(straw length) for calculating.70m*1000/200mm=350 pcs/minute.

2. What information shall we provide if we want to get a quote from your company?

Answer: different straw diameter need different straw mold, you need to tell us the straw diameter that you want to produce,also the layer of paper straw,the most common is 3 layers paper straw, for 10mm-12mm paper straws,better to make 4 layers, the cost will also increased.

3. Do you provide free spare parts?

Answer: Yes, we provide cutting blades,winding belt,straw mold,air cyclinder

4. Do you have paper straw bending machine, straw packing machine?

Answer: Yes,we provide complete solutions, from straw making to straw packing machine.

5. What about training & installation?

Answer: We can provide on site training in our factory, it's better if your company can send one engineer come and get training here.

6. What about lead time and payment?

Answer: 40days, 30% deposit by TT,balance paid before delivery.
