High-output thermoforming machine for plastic lids, trays, and packaging boxes. Supports PP, PET, HIPS, and PVC sheets up to 550mm wide. Features 530×260mm forming area, 15–28 cycles/min speed, and 24kW total power. Ideal for food, cosmetic, and medical packaging. Fully automatic operation with custom mold support.
Model No :
YK-TF550AProduct Name :
Plastic cup lid forming machinePower Supply :
380V 3P 50HZProduction Capacity :
15-28 cycle/minUsage :
to produce plastic lids,medicine/food/daily/electronics/hardwareShipping Port :
Shanghai/ningbo portLead Time :
35daysWeight :
3200kg
The YK-TF550A is a high-performance plastic thermoforming machine designed for producing a wide variety of packaging products such as plastic lids, food trays, cosmetic boxes, hardware blisters, and medical trays.
It supports materials including PP, PET, HIPS, PVC, and GPPS, and offers full-cycle automatic operation: feeding, heating, forming, cutting, and stacking.
Built with a robust 24kW drive and a forming area of 530×260mm, it’s ideal for high-speed, continuous production of precision thermoformed items.
 |
Max Sheet Width: 550mm
Maximum Forming Area: 530mm × 260mm
Maximum Forming Depth: 50mm
Speed: 15–28 cycles/min (adjustable)
This generous forming range allows multi-cavity molds, helping manufacturers boost per-cycle productivity and reduce unit cost.
 |
This automatic thermoforming line combines
Roll sheet unwinding & feeding
Electric heating + vacuum/pressure forming
Hole punching, edge cutting & trimming
Stacking and counting of finished lids/trays
Powered by a reliable PLC + touchscreen system, it ensures high precision and minimal scrap rate under 24/7 production.
 |
Total Power: 24kW
Compressed Air: 0.6–1.0 MPa
Air Consumption: > 3 m³/min
Water Cooling: Tap/recycle water, 60L/h
Machine Weight: 3200 kg
Packing Size: 4600×1500×1900 mm
Fully automatic: feeding → heating → forming → punching → cutting → stacking
Suitable for both transparent and colored sheet rolls
Servo-controlled pulling system for high positioning accuracy
CE-compliant safety cover and emergency stop mechanism
Easy mold change system, supports custom mold development
Scrap rewinder, automatic stacking & counting system
 |

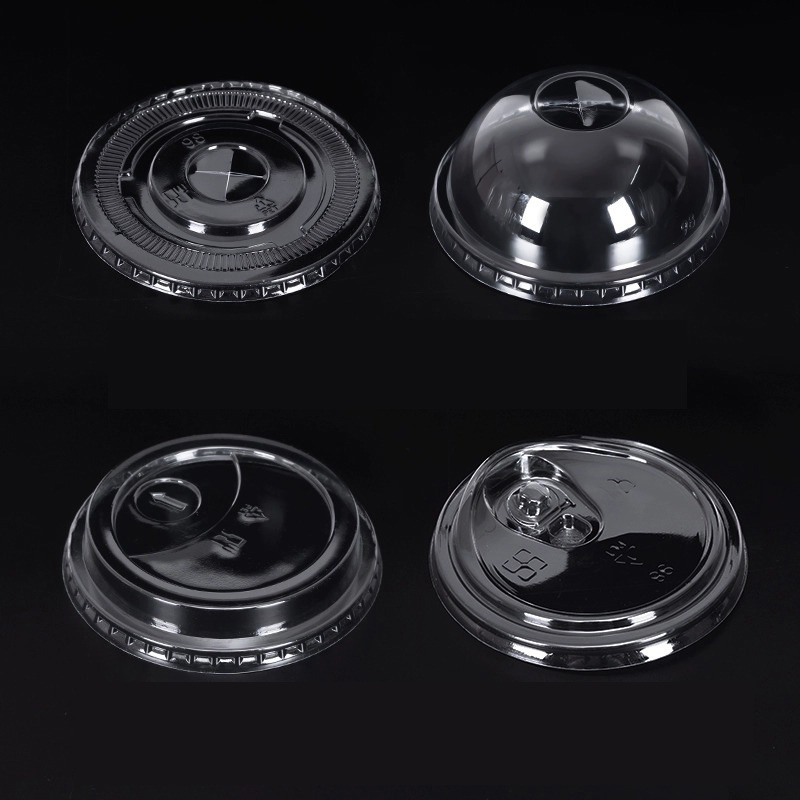

Drink cup lids (flat/dome)
Disposable food trays, lunch boxes
Cosmetic and skincare packaging
Medical trays, pill pack shells
Hardware & tool blisters
Custom OEM thermoformed parts
 |
Disposable packaging manufacturing
Food & beverage packaging supply
Cosmetics and medical packaging
Retail blister product producers
OEM and ODM packaging line integrators
Q: Can this machine handle PLA or biodegradable sheets?
A: It supports PET, HIPS, GPPS, PVC, and partially PLA sheets with proper heating settings.
Q: How many cavities can fit into the forming area?
A: That depends on the lid or tray size—e.g., for 90mm cup lids, typically 4–6 cavities are possible in 530×260mm area.
Q: Does this machine support auto stacking?
A: Yes, it can be equipped with a stacking and counting unit, or integrated into a full packaging line.
Q: What type of molds are supported?

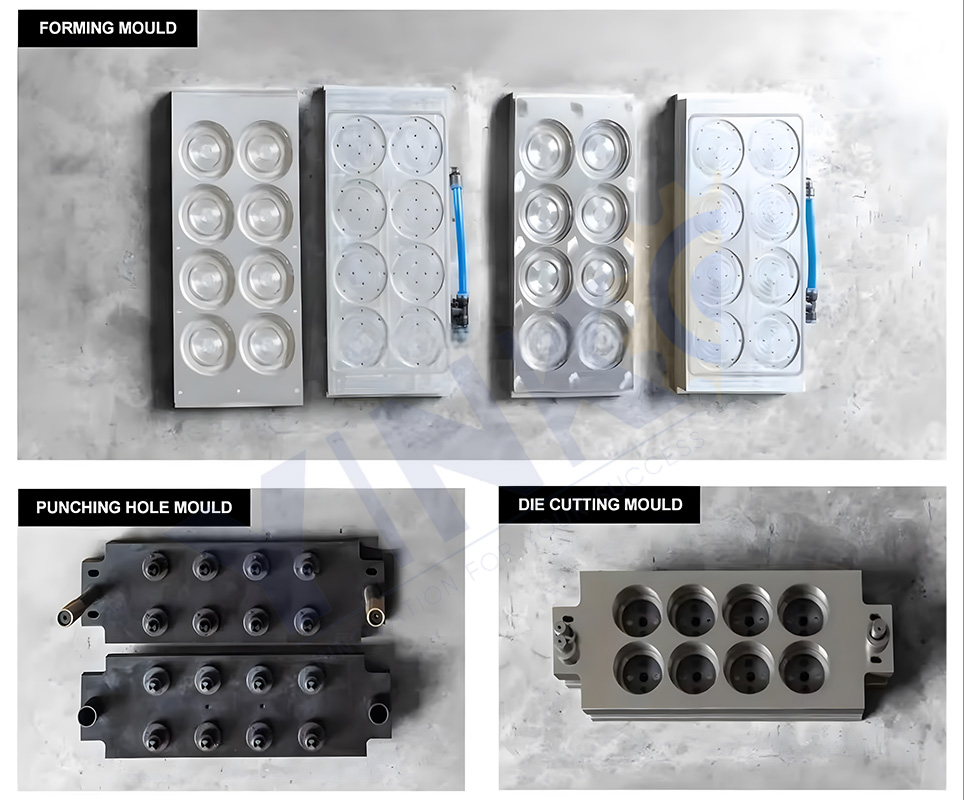

A: We provide custom aluminum molds with or without logo embossing, designed based on your sample or CAD drawing.
 |
 |
 |
 |
