High-speed paper lid machine designed for making eco-friendly lids for coffee cups and food bowls. Supports PE or PLA coated paper from 250–450gsm. Lid diameter range: 65–125mm. Reliable performance with ultrasonic or hot air sealing. Ideal for sustainable takeaway packaging production
Model No :
YK-ZGJ70Product Name :
Paper Lid MachineVoltage :
380V 3P 50HZProduction Capacity :
55-65 pcs/minUsage :
Produce Paper LidShipping Port :
Shanghai/ningbo portLead Time :
35daysWeight :

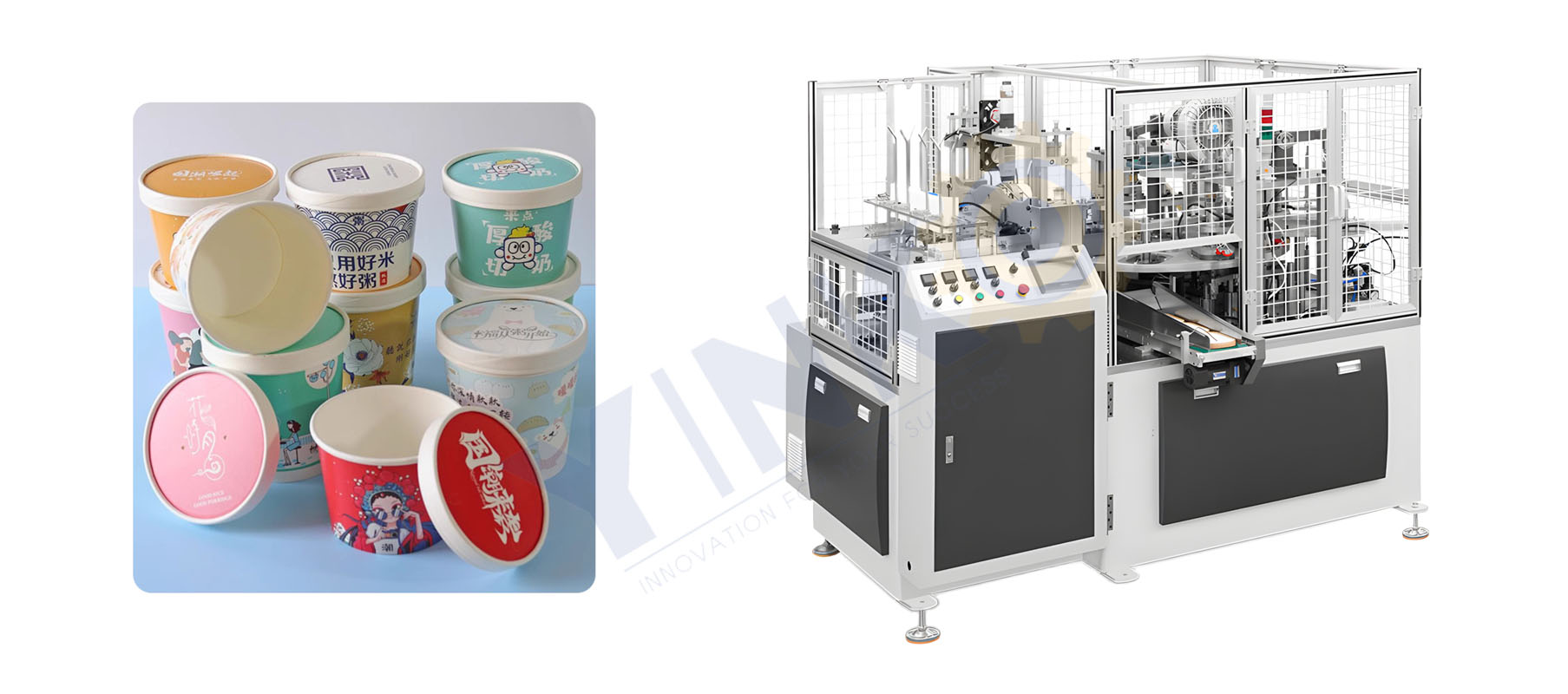

3000kgThe YK-ZGJ70 is a fully automatic paper lid forming machine designed for producing a wide range of eco-friendly paper lids used in beverage, food service, and packaging industries.
It supports PE-coated and PLA-coated paper in thicknesses ranging from 250 to 450 gsm and is capable of producing up to 65 paper lids per minute with high consistency and precision.
 |

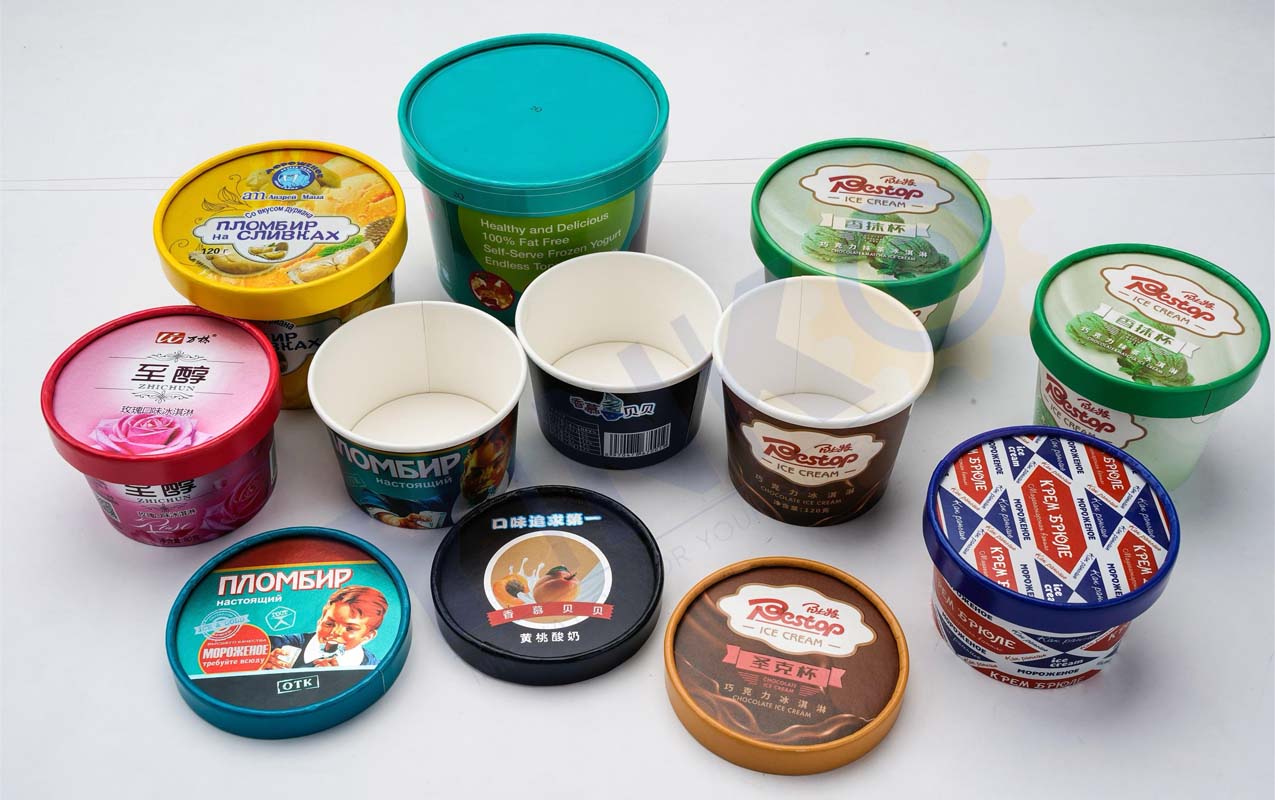

This machine is suitable for producing:
Paper bowl covers
Ice cream cup lids
Coffee cup lids
Instant noodle bowl lids
PLA/PE eco paper lids for takeaway food & drinks
 |
Its flexible mold configuration allows production of lid diameters from 65mm to 125mm, with a height range of 14–25mm.
✅ Dual bonding modes: Supports ultrasonic or hot air sealing for different paper materials and production needs
✅ Stable & intelligent operation: Controlled by Inovance PLC + Schneider electricals with photoelectric sensor monitoring
✅ Compact and accessible: Designed for small footprint with user-friendly maintenance
✅ Robust drive system: Equipped with Libang gear motor, AIRTAC pneumatics, and open cam structure for high-speed output
✅ Low operator demand: Requires only 1 worker to operate, reducing labor cost
 |
 |
|
Parameter |
Specification |
|---|---|
|
Model |
YK-ZGJ70 |
|
Lid Diameter Range |
65–125 mm |
|
Lid Height |
14–25 mm |
|
Applicable Paper |
PE / PLA coated paper (250–450gsm) |
|
Speed |
Max 55–65 pcs/min |
|
Power |
10 kW |
|
Voltage |
380V / 3PH / 4 Wire |
|
Control System |
PLC by Inovance |
|
Driving System |
Open cam with frequency converter |
|
Bonding Mode |
Ultrasonic or Hot Air Blow |
|
Air Supply |
≥ 0.12 m³/min @ 0.4 MPa |
|
Machine Size (L×W×H) |
2380 × 1600 × 1850 mm |
|
Machine Weight |
3000 kg |
1 SET of standard tools
4 PCS heating elements
20 PCS vacuum suction cups
Multiple screw/tracheal connectors
Ultrasonic bonding system by Shanghai Shide
Encoder by Yaskawa / Autonics
🌱 Supports sustainable packaging with compostable PLA-coated lids
💰 Saves cost through efficient 65 pcs/min productivity and long component lifespan
⚙️ Ideal for integration in food & beverage factories, quick-service chains, paper product manufacturers
Q: Can this machine run PLA-coated paper?
A: Yes. It supports both PLA and PE-coated paper from 0.40–0.50mm thickness.
Q: What is the bonding method?
A: You can choose between ultrasonic or hot air blow, depending on your material and production preferences.
Q: What kind of lids can I produce?
A: Coffee cup lids, soup bowl covers, and custom-sized paper lids between 65–125mm in diameter.
Q: Does the machine include vacuum suction?
A: Yes, it comes with 20 suction heads for accurate paper feeding and placement.
 |
 |
 |
 |
