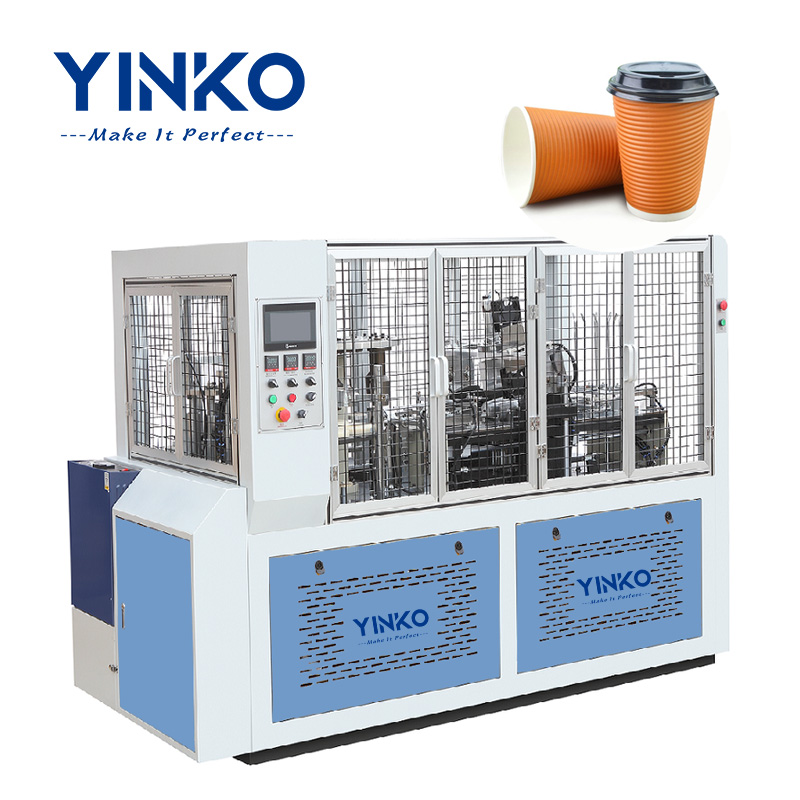

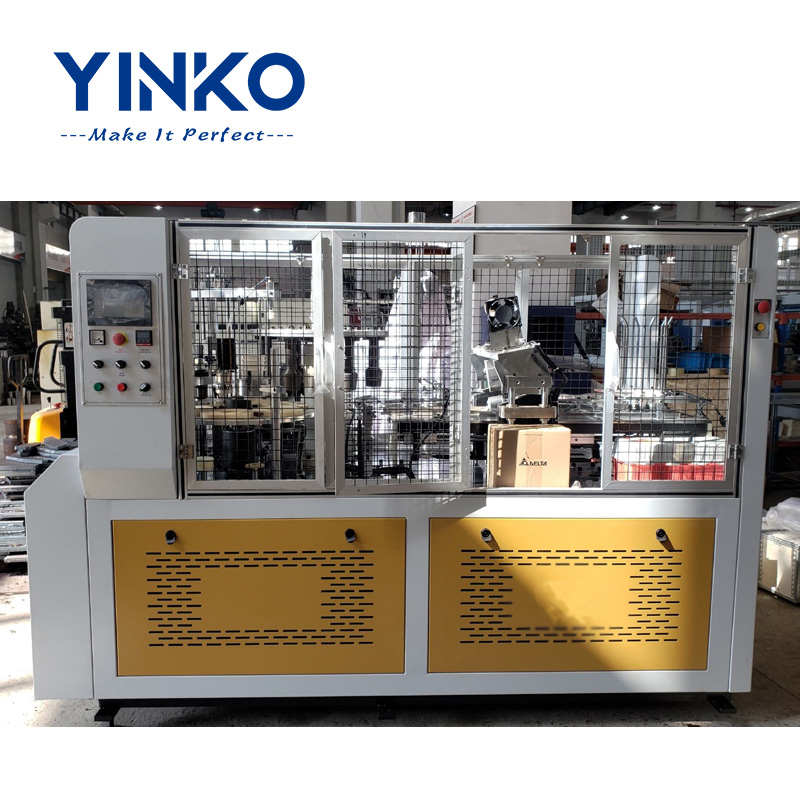

YK-09T High speed double wall paper cup sleeve machine is a kind of automatic double layer cup forming machine.
Model No :
YK-09TProduct Name :
Double wall paper cup forming machineVoltage :
3P 380V 50HZProduction Capacity :
50-60pcs/minUsage :
to make double wall paper cupShipping Port :
Shanghai/ningbo portLead Time :
Within 45daysWeight :
1700kg| Double wall paper cup making machine | |
 |
YK-09T double wall cup machine is a kind of automatic double layer cup forming machine. It comes with open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. It has functions of automatic paper feeding row by row, ultrasonic sealing, paper cylinder transferred by mechanical arm, oiling, bottom folding, stepping glueing system, air cylinder system and double wall paper cup stacking. It has invertor for auto speed adjusting, stops automatically if any problem controlled by sensors, so that the machine is well protected and becomes more durable.
|

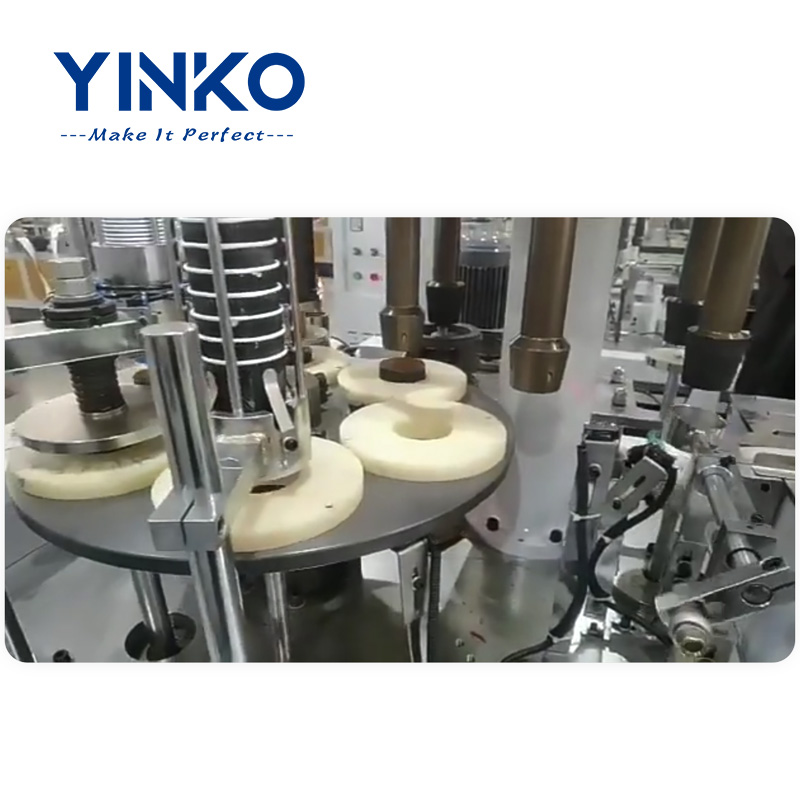

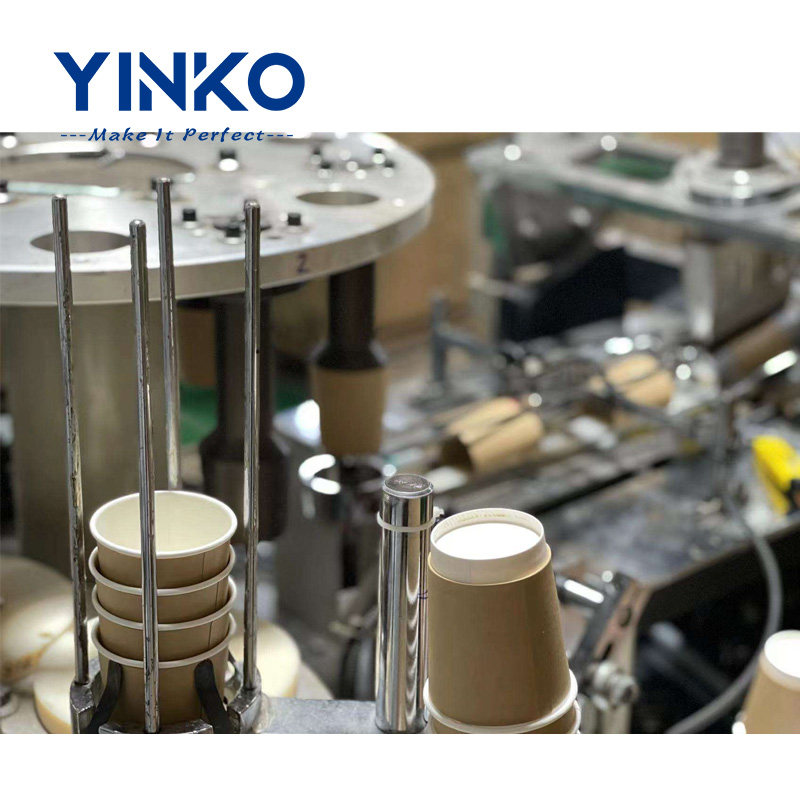

Machine details
 |
 |
 |
Technical data
| Model | YK-09T |
| Product | Double wall cup forming machine |
| Cup size | 8-35oz |
| Material | 200-350gsm paper board |
| Production speed | 50-60cups/min |
| Power supply | 220V 380V 3P 50HZ |
| Total power | 2.5KW |
| Air supply | 0.4m3/min |
| Weight | 1700kgs |
| Overall size | 2700x1350x1800mm |
| Remarks: All specifications are subject to change without notice. | |

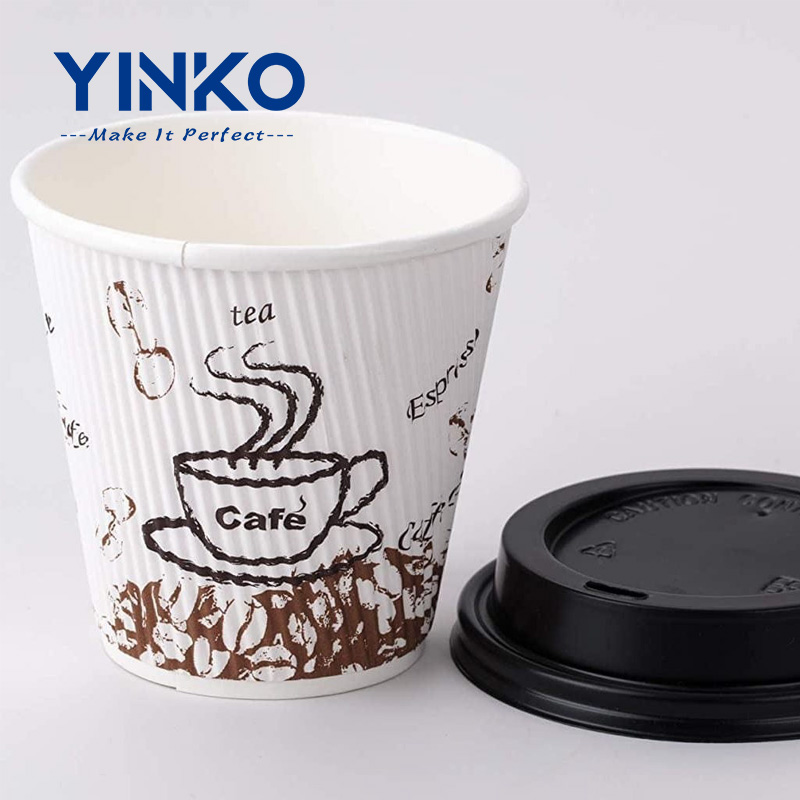

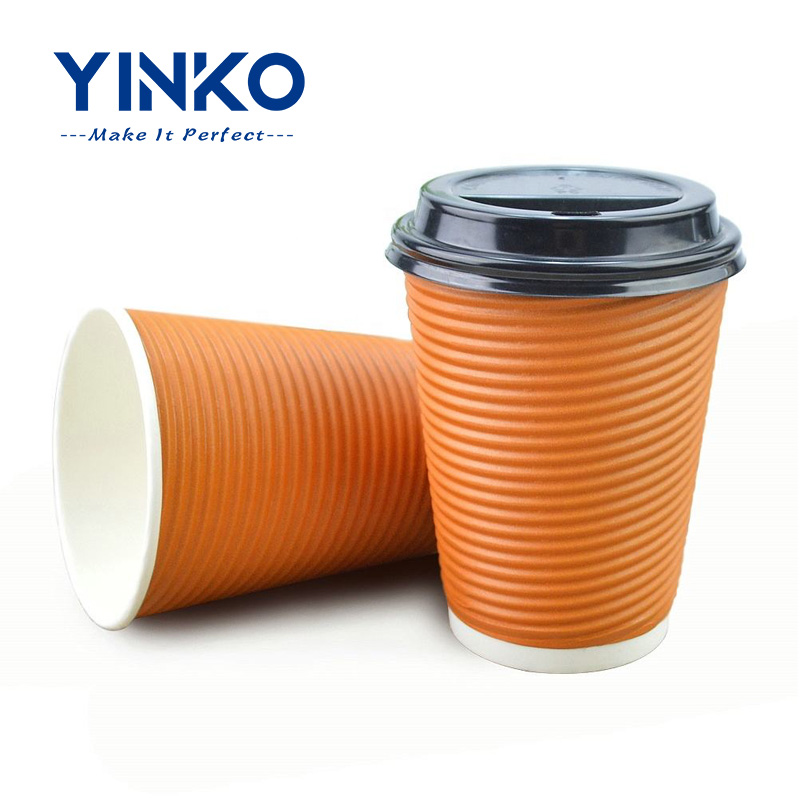

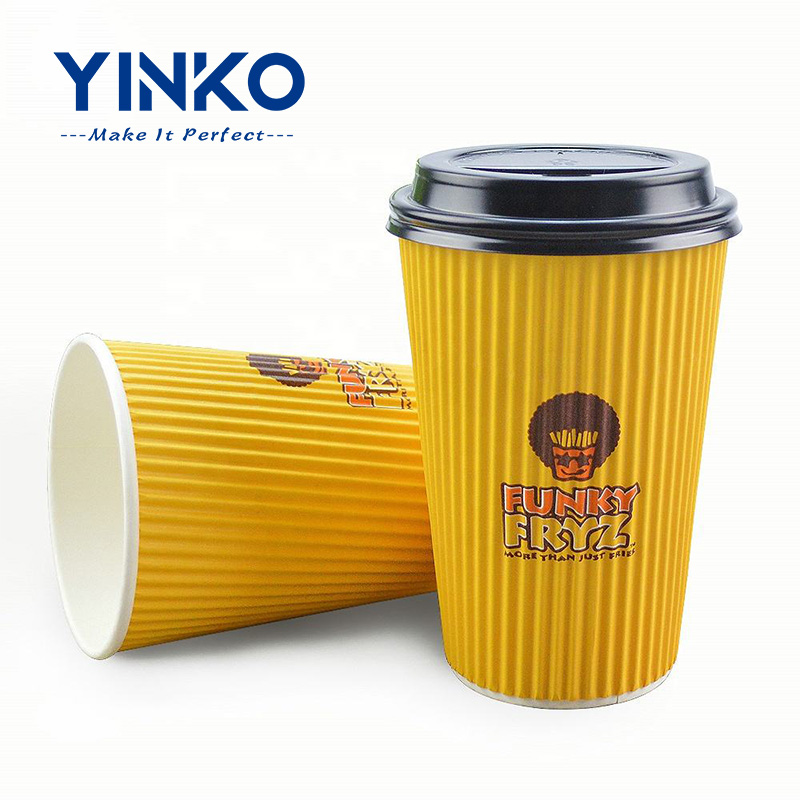

Double wall cup samples
 |
 |
 |
What else we can provide
 |
 |
 |

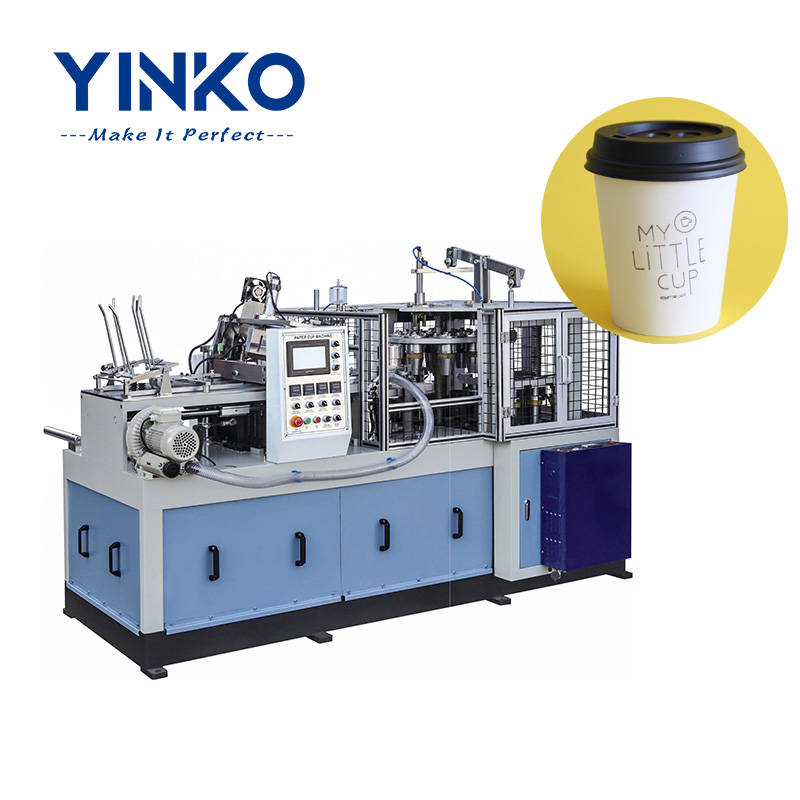

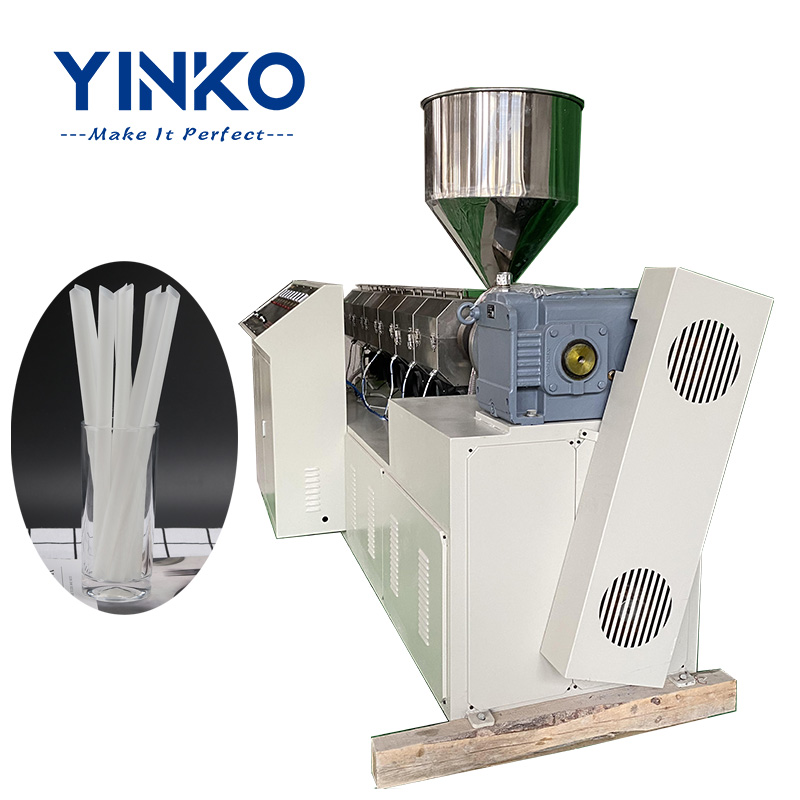

| Paper cup making machine | Coffee stirrer making machine | Drinking straw making machine |
