Drinking Straw Machine
Home Drinking Straw Machine

High speed flexible straw machine for bendy straw making

High speed flexible straw machine for bendy straw making
High speed flexible straw machine for bendy straw making
High speed flexible straw machine for bendy straw making
High speed flexible straw machine for bendy straw making

High speed flexible straw machine for bendy straw making

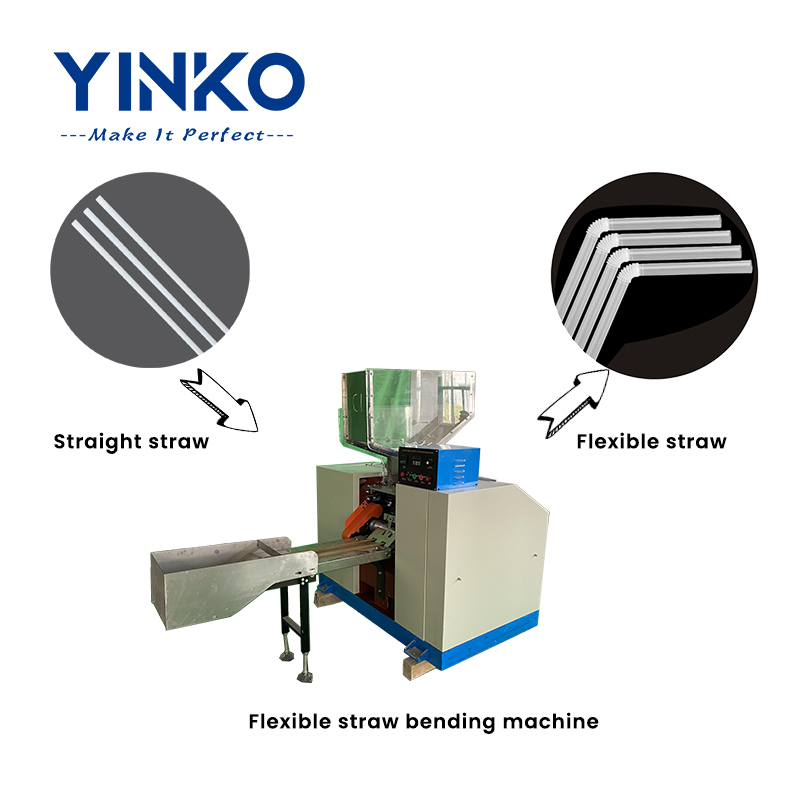

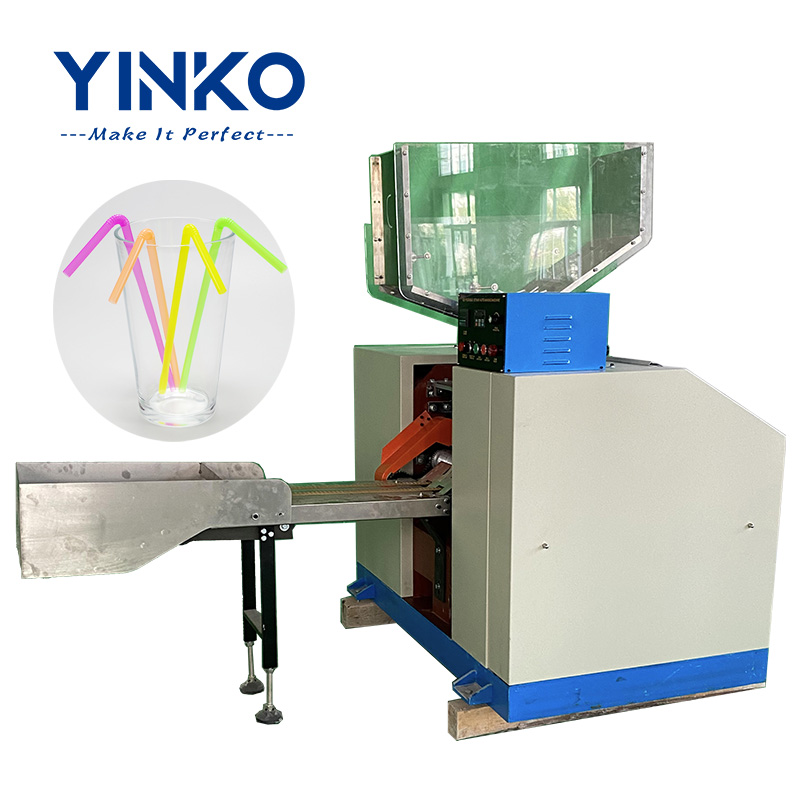

YK-021 flexible straw bending machine is used to bend the straight straw/pipe into flexible shape

  • Model No :

    YK-021

  • Product Name :

    Flexible straw bending machine

  • Power Supply :

    3P 380V 50HZ

  • Production Capacity :

    200~300pcs/min

  • Usage :

    Used to making flexible straw

  • Shipping Port :

    Shanghai/Ningbo port

  • Lead Time :

    35days

  • Material :

    PP/PLA/PAPER Straw
Inquire Now

The YK021 is a fully automatic forming machine designed to transform straight drinking straws into flexible ones.

Operated by a single person, the process begins with loading straight straws into the machine’s top-mounted hopper. From there, the straws are fed individually into the main drum, where they are securely clamped by two mechanical hands.

As the drum rotates, each straw passes through two rotary dies, which apply a precise die-pressed effect. The straw is then compressed by the mechanical hands, creating its flexible shape. Finished straws are automatically discharged as output.

The main drum operates continuously, processing up to 12 straws simultaneously, ensuring high efficiency and consistent production.
Flexible straw bending machine flexible straw bending machine



Features

  • High Efficiency: Designed for rapid and reliable performance.
  • Automatic Counting: accurately tracks output during operation.
  • Alarm System: Once the preset quantity is reached, the machine emits an audible alert, simplifying bulk packaging into bags.
  • Automatic Fault Detection: Stops operation instantly when a fault occurs, ensuring safety and minimizing downtime.

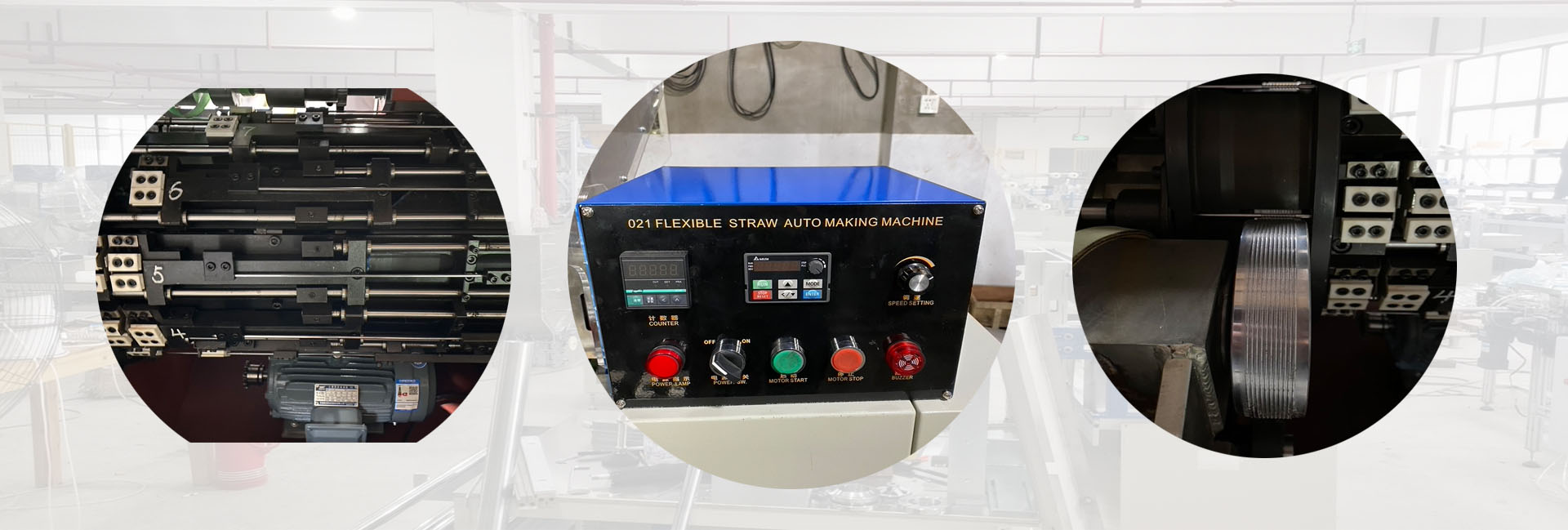

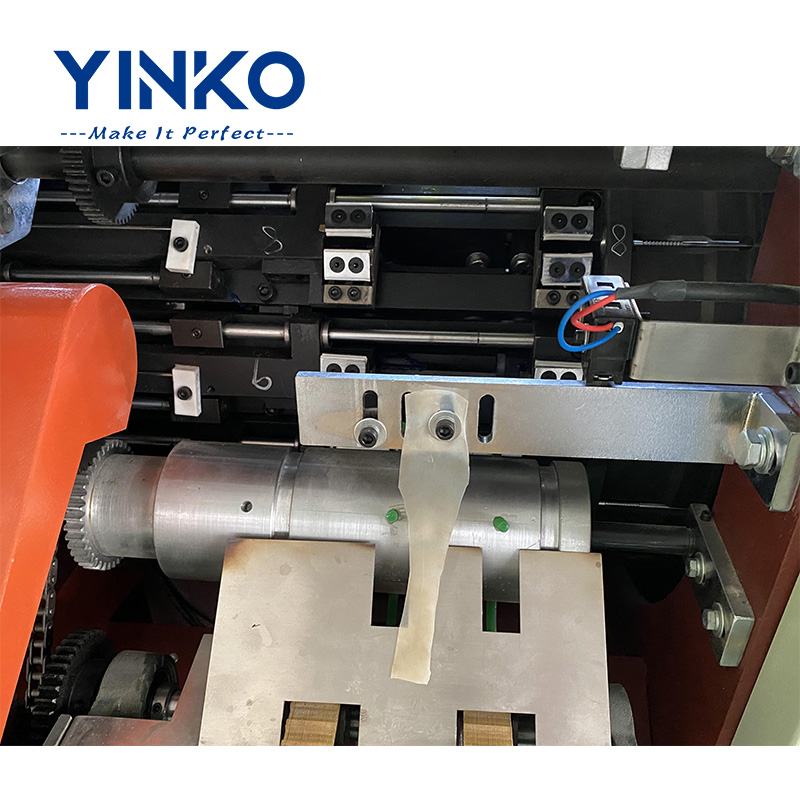

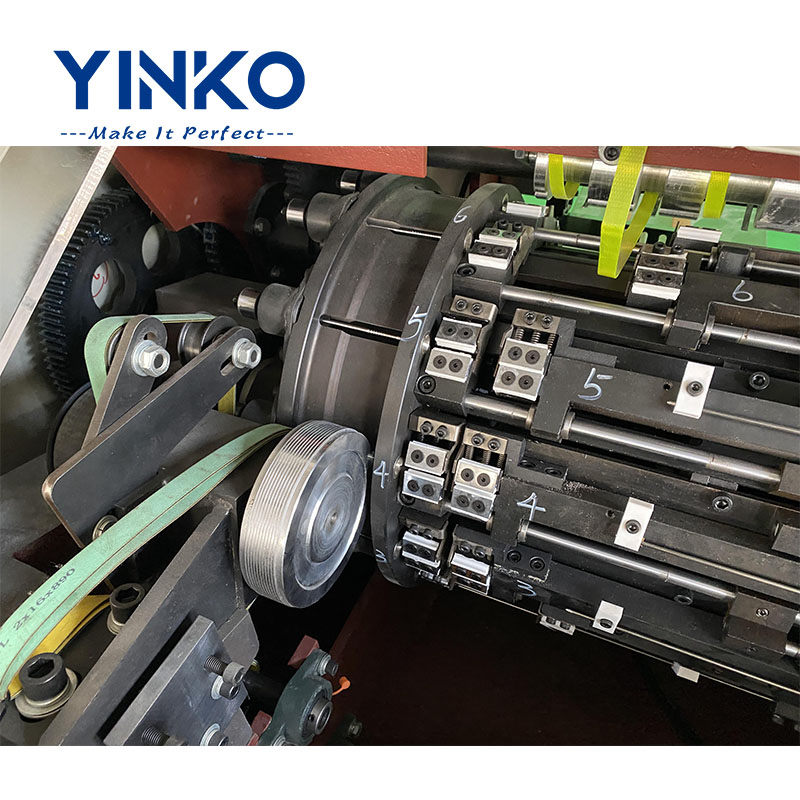

Machine details

flexible straw forming machine flexible straw making machine flexible straw forming machine
flexible straw bending machine



Specifications

Model YK021
Product Flexible straw making machine
Power supply 3P 380V 50HZ 1.5KW (VFD)
Production capacity 200-300pcs/min
Straw specification Inner diameter (standard) Φ3.8mm Φ4.8mm Φ5.8mm
Straw teeth 11
Length of straight straw 165~245mm 200~260mm 200~260mm
Thickness of straw 0.18±0.03mm 0.15±0.03mm 0.15±0.03mm
Length of flexible straw 150~230mm 185~245mm 185~245mm
Front section length 30~50mm
Machine dimension 1.5*1.5*1.7m
Weight 1000kg
The machine can be customized with your requirements
Remarks: All specifications are subject to change without notice



Finished straws

flexible straw flexible drinking straw



U-shaped straw production line

The whole production line consists of one(1) unit straight straw making machine,three(3) units flexible straw making machine,one(1) unit u shape straw packing machine and one(1) unit straw carton packer. high efficiency,only needs a few workers to add the raw material and move the straw from the first machine to the next.
u shape straw production line



FAQ

1. Shall we get different machine for different sizes straw?

Answer: Yes, one diameter one machine, if you want to make different sizes flexible straw, you need to get different machines

2. What information shall we provide if we want to get this machine?

Answer: you have to tell us the straw information, like straw material, inner diameter, length after bended, your local voltage,

3. What's the production capacity of this machine?

Answer: normally 250 pieces/min

4. What about lead time and payment?

Answer: 35 days after deposit, 30% deposit in TT and balance paid before delivery
